Nine toll plaza canopies on the Ganga Expressway.

Nine toll plazas of 2, 8 and 16 lanes: designed, modelled, fabricated and erected, with PTFE tensile fabric canopies.

Toll plazas
9
Lanes
2, 8 and 16
Steel
1,200+ T
Gateway arch
38 m tall, 80 m wide
Canopy
PTFE tensile fabric
Status
Delivered
The project

Long spans over live lanes, a curved fabric roof, and nine sites to build to one programme.

What we made

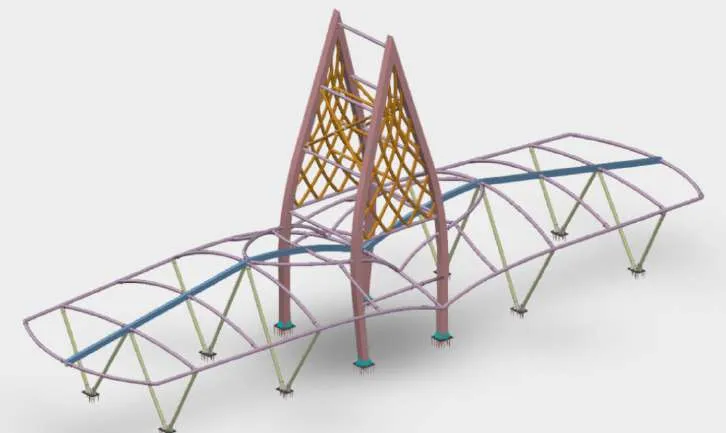

  • Detail design and 3D modelling
  • Tubular columns and lattice girders
  • Bent tube arches
  • Erection and commissioning
How we built it

All 9 plazas constructed and commissioned, Prayagraj included. The main plaza stands 38 m tall and 80 m wide.

Nine toll plaza canopies on the Ganga Expressway Nine toll plaza canopies on the Ganga Expressway

Ganga Expressway toll plazas, the story

More case studies
Tunnels · Mumbai Conveyors and brackets for a 14 m tunnel boring machine 14 m diameter road tunnel Architecture · Kinshasa, DR Congo A 28 m steel dome for a house of worship in Kinshasa 28 m circular, 26 m high Tunnels · Sydney, Australia Tunnel formwork gantry for the Sydney Metro 1,800+ T
Start a project

A project like this?

Send the drawings and an engineer will tell you how we would build it.
